Featuer

1. The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.

2. MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance.

Description:

Brand: Hakrc

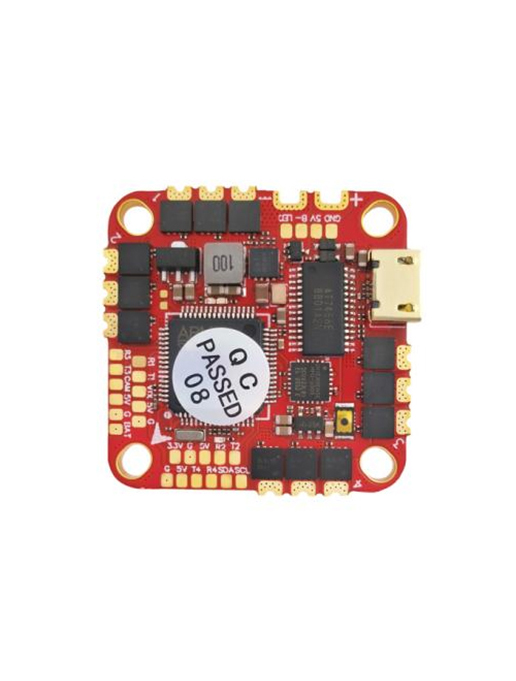

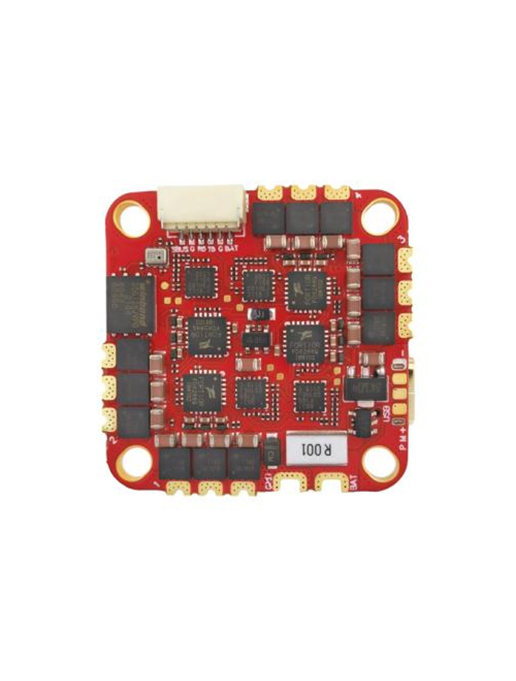

Item Name: F722 FC Built-in 40A BLHELI_ S 2-6S AIO ESC

Size: 32* 32mm (25.5mm-26.5mm mounting hole)

Packing size: ø63*32mm

Product net weight: 7g

Package weight: 25g

Flight control parameters:

CPU: STM32F722RET6

IMU: ICM42688

OSD: AT7456E

Barometer: integrated

BEC: 5V/3A

Uart: 5

LED: Support WS2812 and other programmable

Sensor: Built-in current sensor

Flight control firmware version: HAKRC F722D

Receiver: CRSF / Frsky/ Futaba/ Flysky/

TBS Crossfire/ DSMX: DSM2 receiver

ESC parameters:

Firmware support: BLHELI_ S

Protocol support: PWM, Oneshot125, Oneshot42,

Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-6S Lipo

Continuous current: 40A

Peak current: 50A

Current meter proportional value: 450

Firmware version: BLHELI _S (G- H-30)

Package Included:

1x  F722 Flight Controller AIO

4x Yellow shock-absorbing ball

1x XT30 power cord

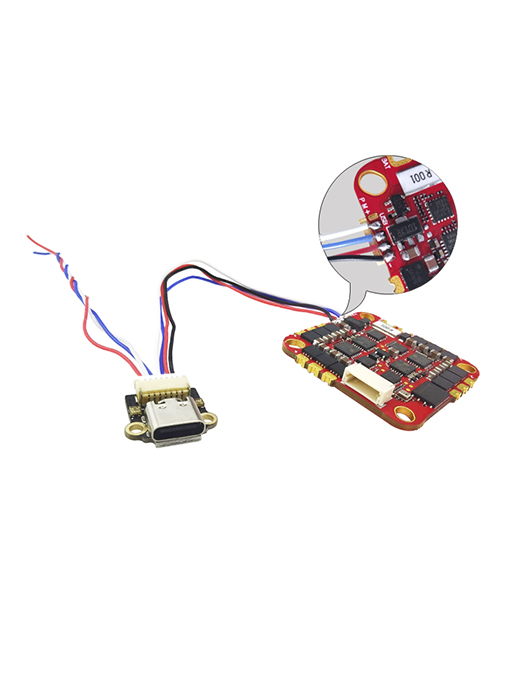

1x Type-C USB small board

1x 80mm long SH1.0/7P single-head cable

1x  270uf/35V capacitor
