Featuer

1. The PCB uses high-end 8 layers of 2oZ thick copper, which has stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 30V high current resistance MOS, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance.

Specification:

Brand: HAKRC

Item Name: HAKRC F411 35A AIO

Mounting Hole: 25.5*25.5mm/26.5*26.5mm

Weight: 7g

Size: 33*33mm

CPU：STM32F411CEU6

IMU：ICM42688

OSD：AT7456E

Barometer: integrated

Black box: 16M

BEC：5V/3A

LED: adjustable LED

Sensor: built-in current sensor

Firmware version: HAKRCF411D

Receiver: ELRS, Frsky/Futaba/Flysky/TBS Crossfire/DSMX: DSM2 receiver

ESC

Firmware: BLHELI_ S (G- H-30)

Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150，Dshot300，Dshot600

Input: 2S-6S Lipo

Con. Current: 35A

Peak Current: 40A

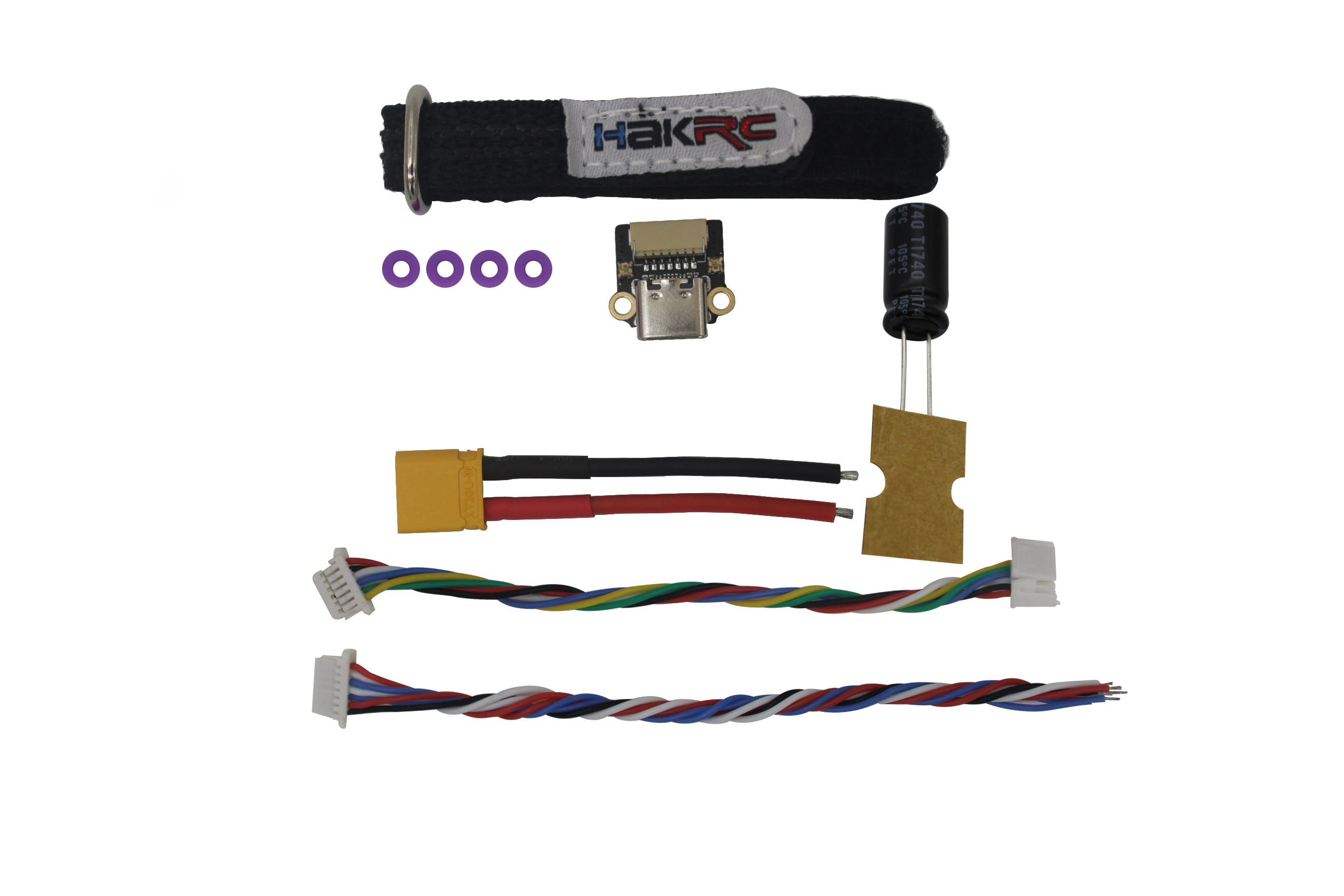

Package Included:

1 X HAKRC 35A AIO Flight Controller
