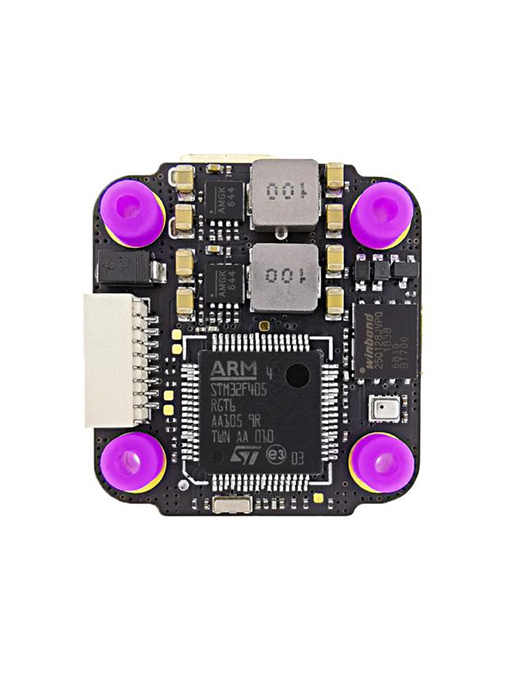

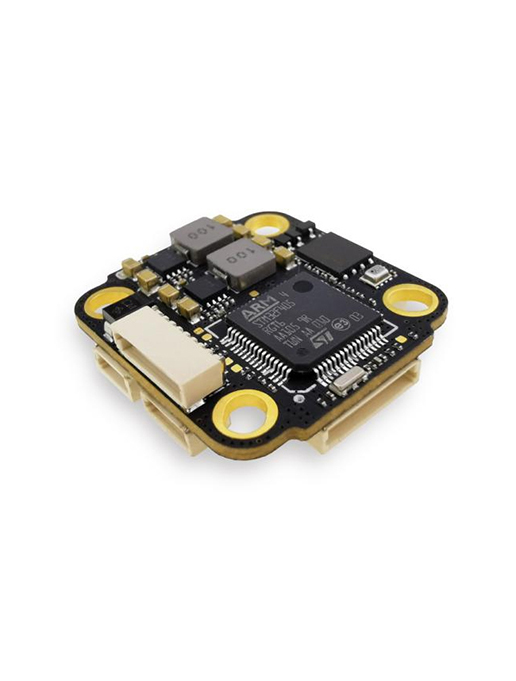

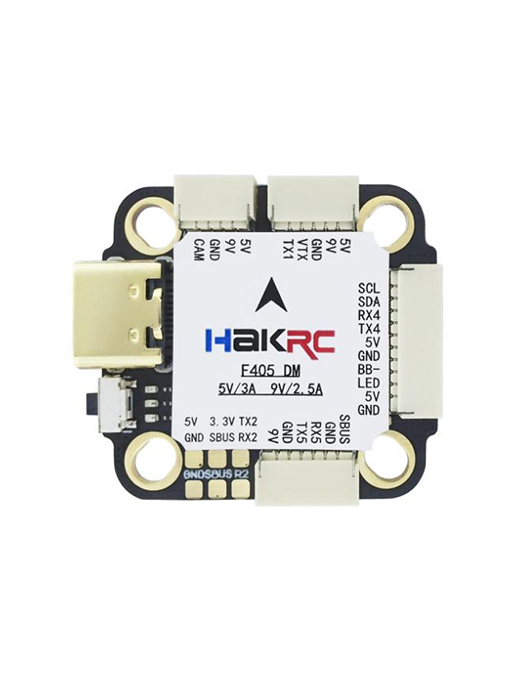

HAKRCF405 D Mini FC

HAKRC F4520D Flight Controller provides great power all in a 20x20mm mounting pattern.The control is equipped with 5 UARTs, MPU6500 IMU, OSD, F.Port and many other functions ! Built-in plug-in allows you to easily connect to the DJI FPV Air System.Integrated 16Mb black box, barometer, upgraded Type-C USB interface, greatly improve socket life and reduce the risk of poor contact. Supports various receivers including Sbus, ELRS, PPM, CRSF, DSMX, iBus, DUMD, etc.

FC Specifications:

Product size: 31*28*8mm

Packing size: Φ62*33mm

Installation hole distance: 20*20mm  φ4mm

Weight: 6g

Packing weight: 20g

MCU: STM32F405RGT6

IMU:MPU6500

Baro: Infineon DPS310 (I2C2)

OSD: AT7456E (SPI2)

Blackbox: 16MB

B   E  C: 5V/3A ; 9V/2.5A

USB interface: TYPE-C

Input voltage: 3—6S

Firmware: HAKRCF405D

Uart serial port: 5

Assistant software: betaflight-configurator

DJI digital image transmission: support
